RETIRED ›
This product is no longer available and has been replaced by: REGSS-10A-12V. Some accessories, replacement parts, or services may still be available.
This product is no longer available and has been replaced by: REGSS-10A-12V. Some accessories, replacement parts, or services may still be available.
| Services Available |
|---|
Overview

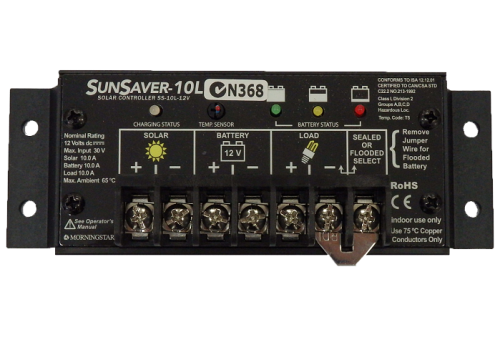

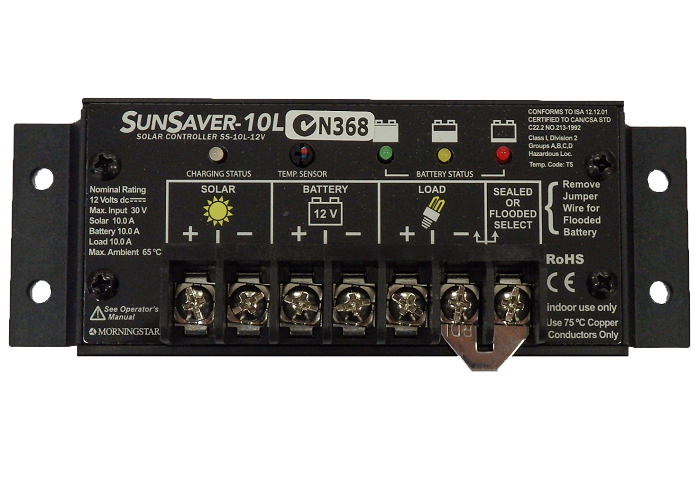

The REG10 allows you to connect a solar panel 12Vdc and a battery 12Vdv to prevent an overcharge the battery.
Read MoreImages
Technical Description
Supply voltage from the solar panel is connected to the Solar Cell terminal. Regulated voltage to charge the datalogger’s sealed rechargeable power supply are sourced from the Battery terminal.
Compatibility
Datalogger Considerations
Compatible Contemporary Dataloggers
| CR200 Series | CR800/CR850 | CR1000 | CR3000 | CR5000 | CR7X | CR9000X |
 |
|
|
|
|
|
Compatible Retired Dataloggers
| CR500 | CR510 | CR10 | CR10X | 21X | CR23X | CR9000 |
|
|
|
|
|
|
|
Specifications
- System voltage: 12 V
- Own consumption: 12.5 mA
- Open circuit voltage solar module:<47V
- Module current: 10 A
- Load current: 10A
- Boost charge voltage: 14.4 V
- Reconnection voltage (SOC / LVR): > 50 % / 12.6 V
- Deep discharge protection (SOC /LVD): < 30 % / 11.1 V
- Operating Temperature: -10 °C to +50 °C
- Dimensions: 187 x 96 x 44 mm
- Weight: 350 g
Mote: Technical data at 25 °C.
