Measures Electrical Conductivity (EC), Temperature and Depth
Compact, Low Cost and Easy to Use.
Compact, Low Cost and Easy to Use.
Overview

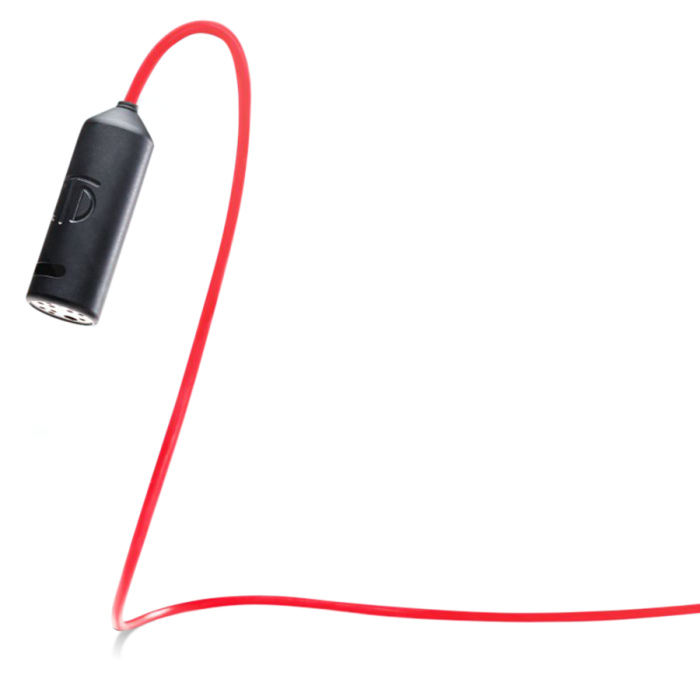

A compact 3.4 cm diameter sensor that fits into tight spaces. The HYDROS 21 is an all-in-one instrument. It's a low-cost, durable, and easy-to-use tool for monitoring EC, temperature, and depth in both groundwater and surface water.
The HYDROS 21 is a water level sensor that is not only highly accurate but also designed to have low-complexity, low-maintenance, and low-cost.
The HYDROS 21 sensor provides accurate EC measurements with a range of 0 to 120 dS/m and a measuring depth of 10 m which makes it ideal for a broad range of applications.
Images
Specifications
Range |
|
| Water depth | 0 to 1,000 cm |
| Electrical conductivity | 0 to 120 dS/m |
| Temperature | -11 to 49 °C. |
| Do not expose to freezing temperatures if sensor is in water | |
Resolution |
|
| Water depth | 2 mm |
| Electrical conductivity | 0.001 dS/m |
| Temperature | 0.1 °C |
Accuracy |
|
| Water depth | +/- 0.5% of full scale @ 20 °C |
| Electrical conductivity | ±0.01 dS/m or ±10% (whichever is greater) |
|
|
| Temperature | ±1 °C |
Operation temperature |
|
| Operation temperature | 0 to 50 °C (Pressure transducer cannot be allowed to freeze while submersed) |
Power requirements |
|
| Power requirements | 3.6 - 15 VDC, 0.03 mA quiescent, 0.5 mA during 300 ms measurement |
Dimensions |
|
| Dimensions | 9 cm (l) x 3.4 cm (w) |
Measurement time |
|
| Measurement Time | 300 ms (milliseconds) |
Output |
|
| Output | Serial TTL, 3.6 Volts Levels or SDI-12 |
Connector types |
|
| Connector types | Stripped & tinned lead wires. |
Cable length |
|
| Cable length | 10 m standard; custom lengths available upon request |
Data logger compatibility (not exclusive) |
|
| Data logger compatibility (not exclusive) | *Campbell Scientifi c: CR10X, CR850, 1000, 3000, etc. |
