Overview

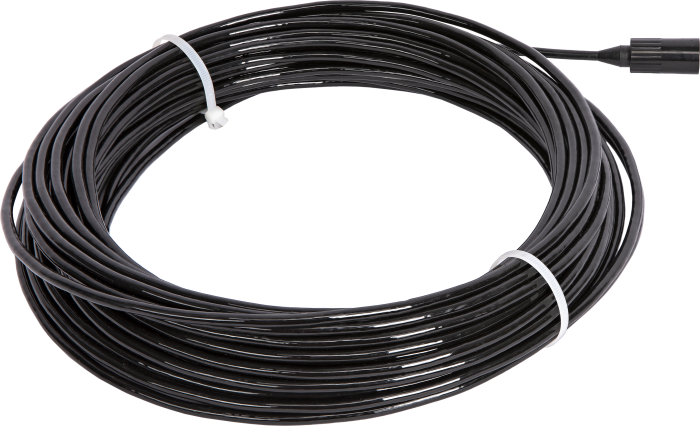

The ClariVue™20CBL is a replacement cable for the ClariVue™20 ISO 7027-Compliant, Side-Scatter, Turbidity Sensor and may be purchased to replace a damaged cable. The cable consists of six aluminum, Mylar-shielded conductors (20 AWG 19/32 tinned copper) insulated in polypropylene with a drain wire. The cable jacket is composed of black UV-resistant polyurethane. The ClariVue 20CBL is filled with a water-blocking compound that ensures water does not damage the sensor nor any equipment that is connected to the sensor.
Images
Compatibility
Please note: The following shows notable compatibility information. It is not a comprehensive list of all compatible products.
Sensors
| Product | Compatible | Note |
|---|---|---|
| ClariVue 20 |
Specifications
| Number of Conductors | 6 |
| Conductors | 20 AWG 19/32 tinned copper with drain |
| Shield | Aluminum Mylar foil |
| Cable Jacket Material | Polyurethane |
| Cable Jacket Thickness | 1.65 mm (0.065 in.) |
| Cable Outer Diameter | 8.0 mm (0.315 in.) |
