Overview

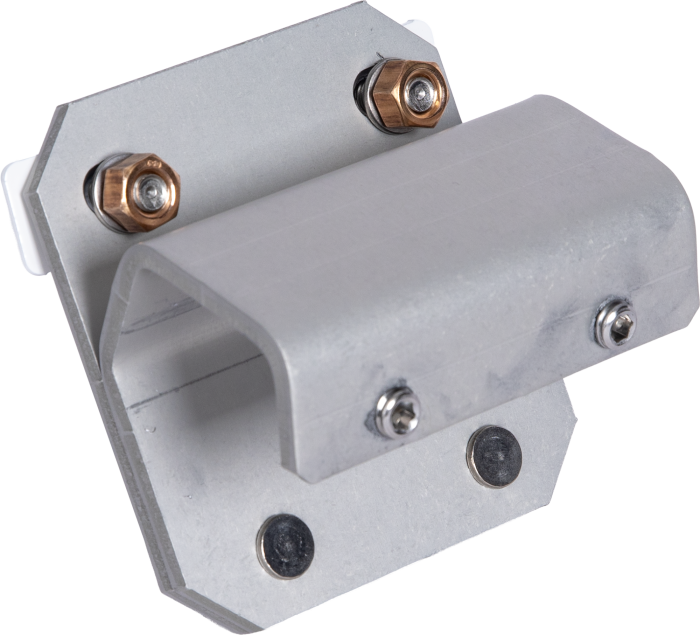

The 44672 DustVue™ Crossarm Mounting Kit enables secure parallel mounting of the DustVue 10 and DustVue 20 to a crossarm. The kit provides a standardized mounting solution for crossarm installations, increasing deployment options for a wider range of site configurations.
The 44672 uses a mounting approach similar to the CM256 Adjustable Plane and Angle Solar Mounting Stand, clamping securely to a crossarm using set screws. This simple and robust design allows the DustVue 10 and DustVue 20 to be mounted parallel to a crossarm while providing a standardized installation method that is easy to deploy in the field and requires minimal site modification.
Images
Compatibility
Please note: The following shows notable compatibility information. It is not a comprehensive list of all compatible products.
Sensors
| Product | Compatible | Note |
|---|---|---|
| DustVue 10 | ||
| DustVue 20 |
Additional Compatibility Information
The 44672 is compatible with crossarms and some user-supplied pipes that have an outside diameter ranging from 3.3 to 4.2 cm (1.3 to 1.66 in.). The clamp design does not support mounting structures outside of this diameter range.
Specifications
| Dimensions | 10.16 x 10.16 x 6.35 cm (4.0 x 4.0 x 2.5 in.) |
| Weight | 385.55 g (0.85 lb) |
